Pro-Media Wall
본문
Black Led 및 Black Coating 으로 반사율“0”및 시인성 극대화

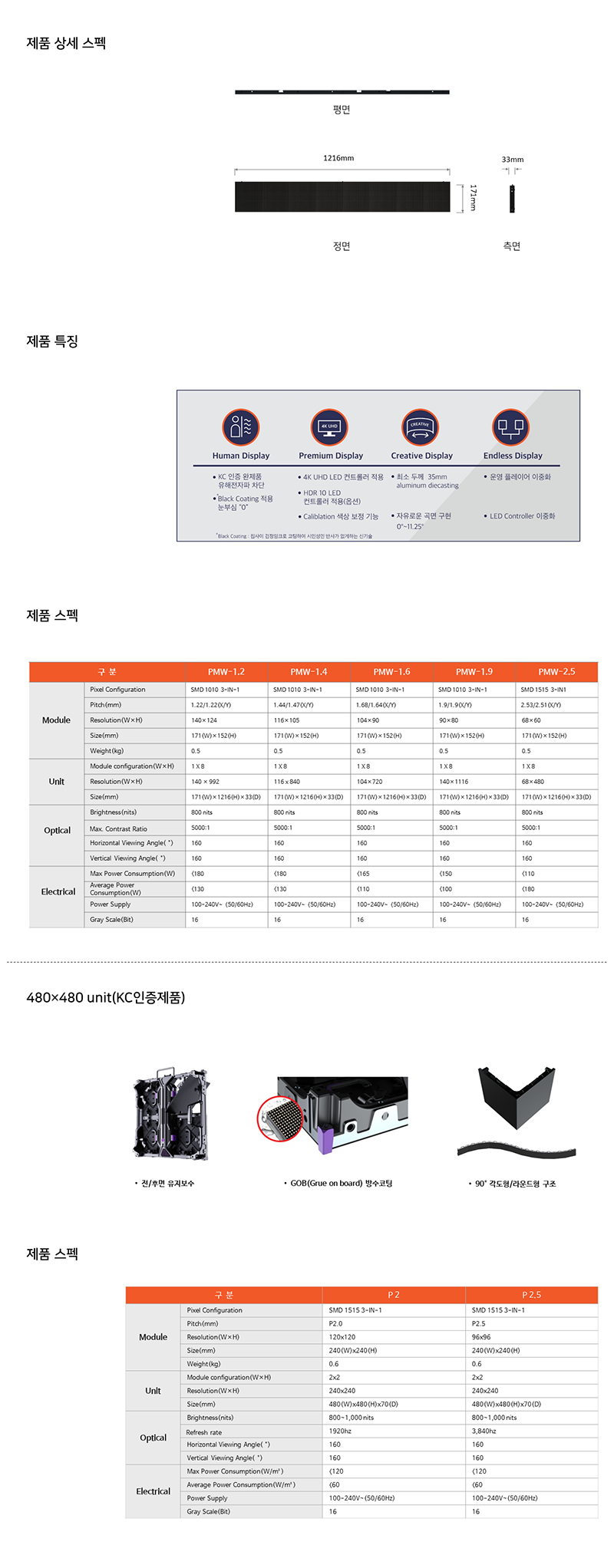

상세정보
| 구 분 | PMW-1.2 | PMW-1.4 | PMW-1.6 | PMW-1.9 | PMW-2.5 | |
| Module | Pixel Configuration | SMD 1010 3-IN-1 | SMD 1010 3-IN-1 | SMD 1010 3-IN-1 | SMD 1010 3-IN-1 | SMD 1515 3-IN-1 |
| Pitch(mm) | 1.22/1.22(X/Y) | 1.44/1.47(X/Y) | 1.68/1.64(X/Y) | 1.9/1.9(X/Y) | 2.53/2.51(X/Y) | |
| Resolution(W×H) | 140×124 | 116×105 | 104×90 | 90×80 | 68×60 | |
| Size(mm) | 171(W)×152(H) | 171(W)×152(H) | 171(W)×152(H) | 171(W)×152(H) | 171(W)×152(H) | |
| weight(kg) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Unit | Module configuration(W×H) | 1×8 | 1×8 | 1×8 | 1×8 | 1×8 |
| Resolution(W×H) | 140×992 | 140×992 | 140×992 | 140×992 | 68×440 | |
| Size(mm) | 171(W)×1216(H)×33(D) | 171(W)×1216(H)×33(D) | 171(W)×1216(H)×33(D) | 171(W)×1216(H)×33(D) | 171(W)×1216(H)×33(D) | |
| Optical | Brightness(nits) | 800 nits | 800 nits | 800 nits | 800 nits | 800 nits |
| Max.Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | |
| Hofizontal Viewing Angle( º) | 160 | 160 | 160 | 160 | 160 | |
| Vertical Viewing Angle( º) |
160 | 160 | 160 | 160 | 160 | |
| Electrical | Max Power Consumption(W) | <180 | <180 | <165 | <150 | <110 |
| Average Power Consumption(W) | <130 | <130 | <110 | <100 | <180 | |
| Power Supply | 100-240V~(50/60Hz) | 100-240V~(50/60Hz) | 100-240V~(50/60Hz) | 100-240V~(50/60Hz) | 100-240V~(50/60Hz) | |
| Gray Scale(Bit) | 16 | 16 | 16 | 16 | 16 | |
480x480 unit (KC인증제품)
•전/후면
유지보수 •GOB(Grue
on board) 방수코팅 •90°
각도형/라운드형
구조
| 구 분 | P 2 | P 2.5 | |
| Module | Pixel Configulation | SMD 1515 3-IN-1 | SMD 1515 3-IN-1 |
| Pitch(mm) | P2.0 | P2.5 | |
| Resolution(W×H) | 120×120 | 96×96 | |
| Size(mm) | 240(W)×240(H) | 240(W)×240(H) | |
| Weight(kg) | 0.6 | 0.6 | |
| Unit | Module configulation(W×H) | 2×2 | 2×2 |
| Resolution(W×H) | 240×240 | 240×240 | |
| Size(mm) | 480(W)×480(H)×70(D) | 480(W)×480(H)×70(D) | |
| Optical | Brightness(nits) | 800~1,000 nits | 800~1,000 nits |
| Refresf rate | 1,920Hz | 3,840Hz | |
| Horizontal Viewing Angle( º) | 160 | 160 | |
| Vertical Viewing Angle( º) | 160 | 160 | |
| Electrical | Max Power Consumption(W/㎡) | <120 | <120 |
| Average Power Consumption(W/㎡) | 60 | <60 | |
| Power Supply | 100-240V~(50/60Hz) | 100-240V~(50/60Hz) | |
| Gray Scale(Bit) | 16 | 16 | |
